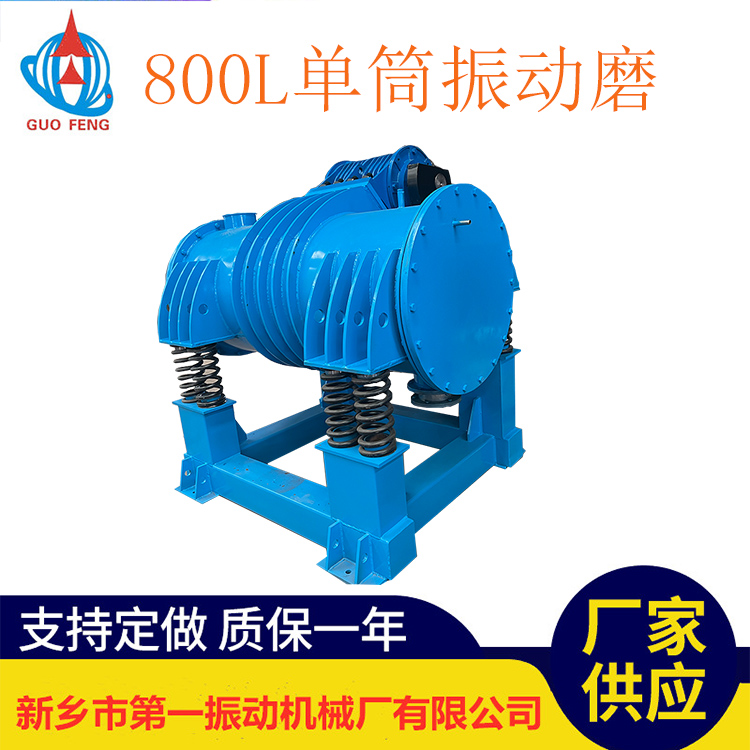

ZM系列振動磨機是一種新型高效節能型粉磨設備。它在磨制
細粉和超細粉物料時,比傳統的回轉式磨機具有明顯的優越性。
(效率提高2-5倍,能耗降低20%-30%),該機具有振動強度大,
磨粉效率高功率消耗少、噪音小、結構緊湊安裝維修方便等優點。
該機可以廣泛應用于選礦、建筑材料、研磨材料、粉未冶
金、電力、陶瓷、耐火材料、磁性材料、化工、食品等多種行業,
是球磨機的換代產品
ZM series of vibration mill is a new type of efficient grinding equipment in grinding fine and super fine powder materials.It is more convenient than conventional rotary grinding machine (efficiency of 2-5 times, reducing energy consumption by 20% - 30%). The machine has various vibration strength,high efficiency ,low power consumption, less noise and compact structure, convenient installation and maintenance,etc.the vibrating mill
falls in with popular demands. The machine can be widely used in mineral, building materials ,grinding materials of powder metallurgy ,electric, ceramic,, refractory, magnetic material, Chemical, food ,and other
industries, it is the ideal substitute of ball mill.
參數 型號 | 電機 型號 | 功率 | 筒體容積(L) | 產量 (kg/h) | 入料粒度 (μm) | 出料粒度(μm) | 振頻(r/min) | 工作振幅 |
ZM5 | HB5-6 | 0.4 | 5 | 1-5 |
0-25 |
0.1-0.010 | 960 |
0-10 |
ZM10 | HB10-6 | 0.75 | 10 | 5-10 | 980 | |||
ZM20 | HB16-6 | 1.1 | 20 | 20-50 | ||||
ZM50 | HB20-6 | 1.5 | 50 | 50-100 | ||||
ZM100 | HB30-6 | 2.2 | 100 | 50-150 | ||||
ZM200 | HB50-6 | 3.7 | 200 | 50-200 | ||||
ZM400 | HB100-6 | 7.5 | 400 | 50-300 | ||||
ZM500 | HB100-6 | 8.5 | 500 | 50-400 | ||||
ZM600 | HB140-6 | 9.5 | 600 | 50-600 | ||||
ZM800 | HB160-6 | 12 | 800 | 50-1000 |
